AUDIO TECHNICA VM520EB/ H HDSHL/ CARTRIDGE COMB

AUDIO TECHNICA VM520EB/H Headshell/Cartridge Combo Kit Headshell/cart

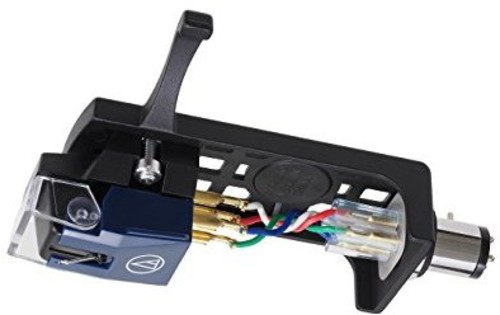

The VM520EB/H combo kit includes the VM520EB elliptical bonded dual moving magnet cartridge premounted on the AT-HS10BK universal 1/2"-mount headshell. The VM520EB is part of the 500 Series in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM520EB is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Includes mounting hardware.

Product Features

Frequency Response 20-23,000 Hz

Channel Separation 27 dB (1 kHz)

Vertical Tracking Force 1.8-2.2 g (2.0 g standard)

Stylus Construction Bonded round shank

Recommended Load Impedance 47,000 ohms

Output 4.5 mV (at 1 kHz, 5 cm/sec)

Channel Balance 1.5 dB (1 kHz)

Stylus Shape 0.3 x 0.7 mil elliptical

Cantilever Aluminum pipe

Mount Half-inch
